NOTE: All numbers are at the wheels.
To get an
estimate of crank HP numbers add 25%.
4-cyl N/A |
4-cyl turbo| 6 cyl N/A | 6cyl turbo |
V-8 |
other websites
Comparisons
- - - - - - 4 cylinder non-turbo - - - - - -

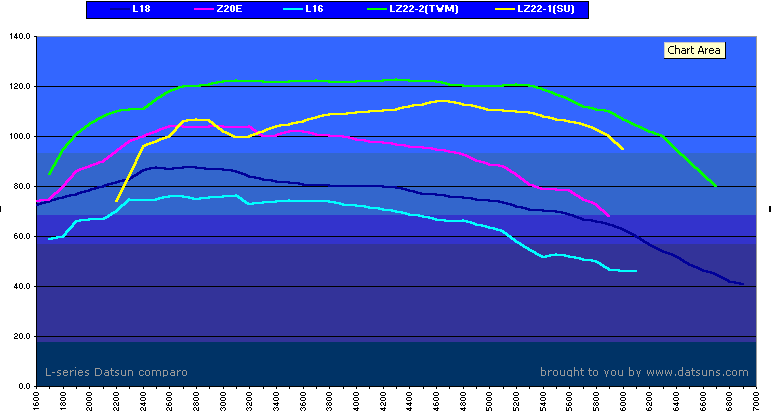

Comparison chart of L-series power

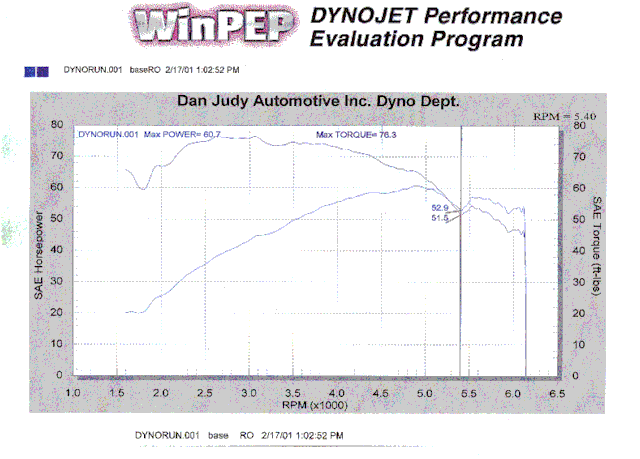

L16 (1971 510 - 4-speed)(RWD)(Stock)
60.7HP@4900rpm
76.3 ft-lbs@3100RPM
(actual sheet)
L16SSS (1971 510 - 4-speed)
(RWD)
74HP@????rpm
(Details to follow soon)

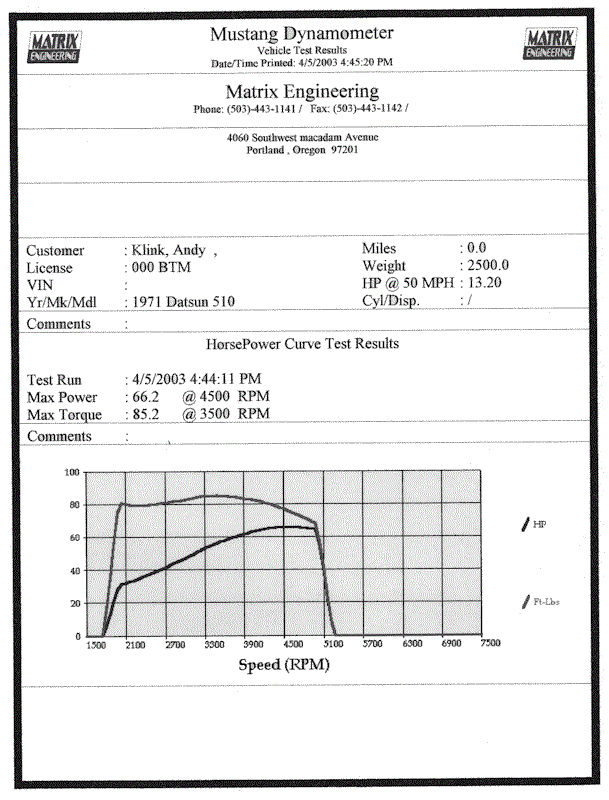

L18 (1971 510 5-speed)(RWD)
66HP@4500rpm
85 ft-lbs@3500RPM
Very tired stock L18
(actual sheet)

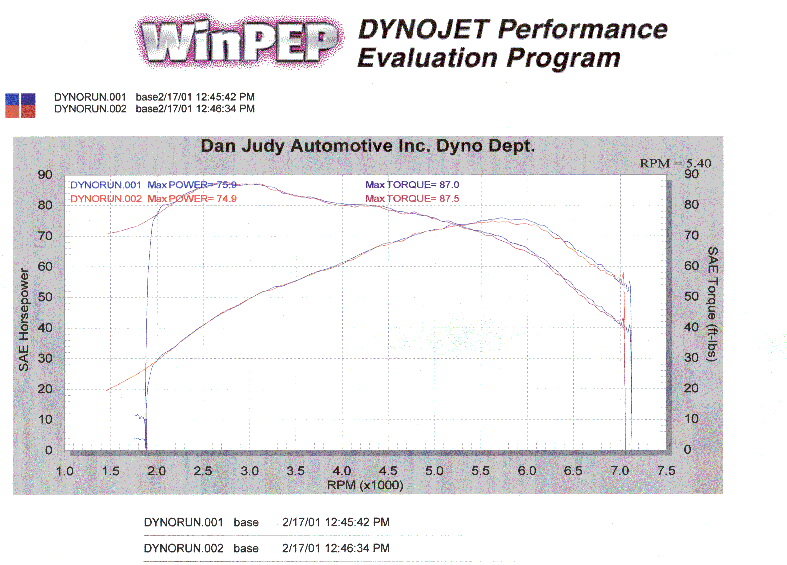

L18 (1970 510 - 5-speed)(RWD)
75.9HP@5900rpm
87.5 ft-lbs@2700RPM
Headwork by Broos. Stock hardware. Japanese-market EFI conversion
(actual sheet)

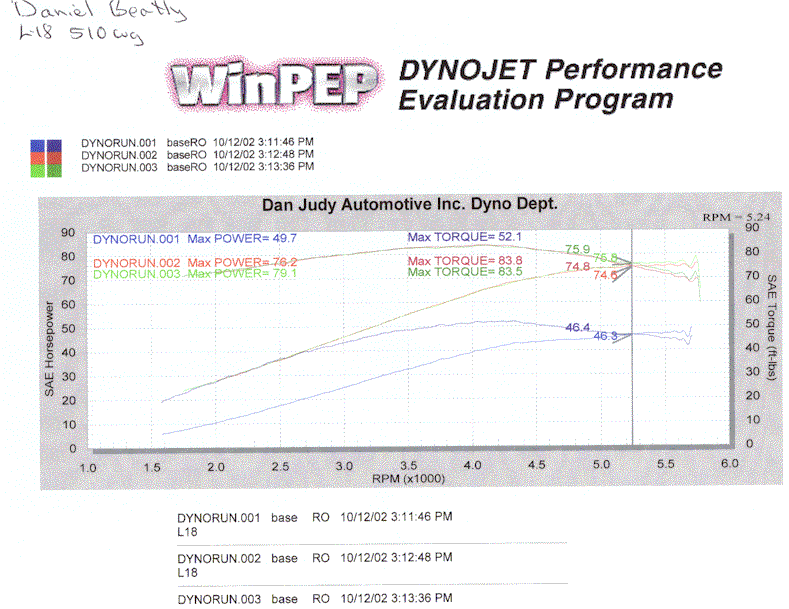

L18 (1971 510 wagon- 5-speed)(RWD)
79.1HP@5300rpm
83.5 ft-lbs@4100RPM
SU's
(actual sheet)
L20B (1971 510 - 5-speed)(RWD)
93.8HP@4800rpm
119.5 ft-lbs@3200RPM
stock bore, rebuilt 10,000 miles ago. 9.8:1 compression ratio, measured 210PSI
cylinder pressure on compression gauge. Mildly pocket ported "210" casting head,
42mm intake/35mm exhaust
valves, stock "U20" camshaft, L18 pistons, dual weber
DCOE carbs with 30mm chokes. Electronic Ignition Nissan
factory distributer recurved for
18 deg initial advance, 35 deg total advance. Factory SSS L16 exhaust
manifold w/ custom
lengthened 2-into-1 Y pipe to 2" exaust/turbo muffler
(actual sheet) < - more
detail n this page as well
Long rod L20B (RWD)
(Danny http://fiveoneoh.com)
125hp @ 6500rpm
119ft-lbs
The car has a L20B bottom end with 6 inch rods built by Troy Ermish.
U67 Cylinder head prepped and ported by Rebello, valve job since redone by a local machine
shop, large valves. The cam is unknown. It's some sort of cal cams camshaft that has a lot
of overlap, I believe the lift to be under a half inch with a duration under 300. I do not
know. It is running 44mm mikunis with the short intake manifold, and a comp header with 2
inch exhaust. The distributor is a Nissan
black box unit which was just installed. At 5
degrees initial and about 27 degrees total we got 125 horse at 6500rpm and 119 of torque.
These are all at the wheel numbers which are corrected for altitude and temperature.
The car has a L20B bottom end with 6 inch rods built by Troy Ermish.
U67 Cylinder head prepped and ported by Rebello, valve job since redone by a local machine
shop, large valves. The cam is unknown. It's some sort of cal cams camshaft that has a lot
of overlap, I believe the lift to be under a half inch with a duration under 300. I do not
know. It is running 44mm mikunis with the short intake manifold, and a comp header with 2
inch exhaust. The distributor is a Nissan
black box unit which was just installed. At 5
degrees initial and about 27 degrees total we got 125 horse at 6500rpm and 119 of torque.
These are all at the wheel numbers which are corrected for altitude and temperature.

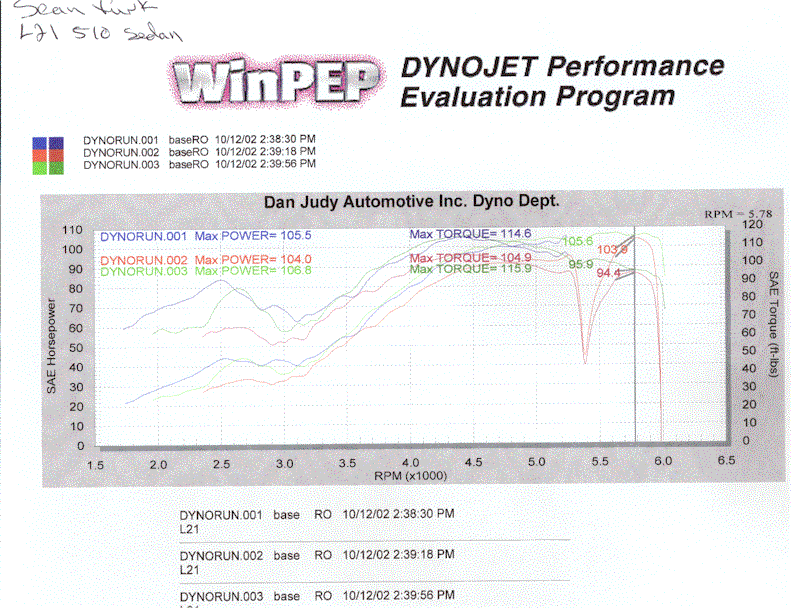

L21 (big bore
L20B) (1971 510 - 5-speed)(RWD)
Stock
stroke
L20B. Z20 siamesed cylinder block w/L20B crank, VG pistons and Z20 6" rods.
Pistons are full floating, non-bushed factory Z31 pistons - flattop w/~1cc
dish created by the two cast valve relief's. Head is an unported W53 closed
chamber, unshrouded polished stainless Z car valves (44/35). DAMB Cam
w/Norris springs and mod'd keepers. Mod'd Z car spray bar, cheap-o header,
Cannon "S" intake w/ 40 DCOE's, very worn black box dizzy.
106.8HP@5600rpm
115.9 @4500rpm
(actual sheet)

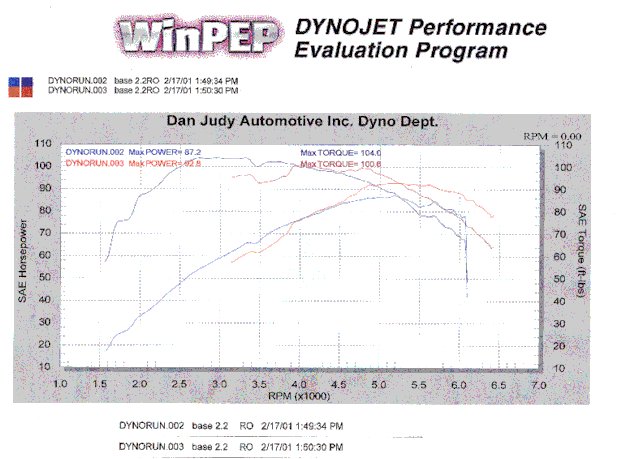

Z22E (1971 510 - 5-speed)(RWD)(Stock)
92.8HP@5300rpm
104 ft-lbs@2600RPM
(actual sheet)
L22 "hybrid" (1973
510 - 5-speed)(RWD)
114.5HP@5700rpm
114.1ft-lbs@4600RPM
LZ22 block, reworked & ported L-series head, DAMB cam, 240Z
(44mm) SU carburetors.
(actual sheet)

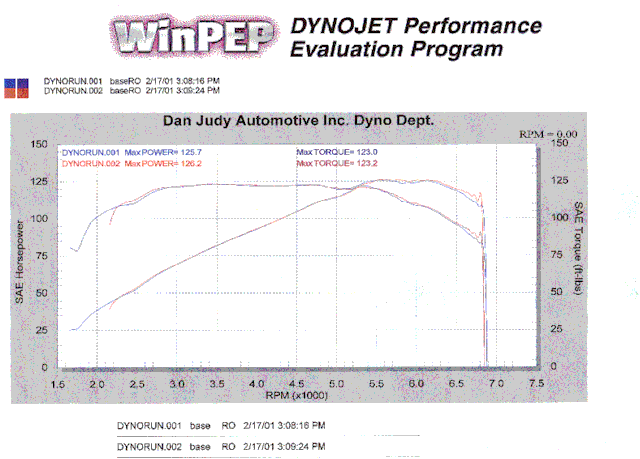

L22 "hybrid" #2
(1970 510 - 5-speed)(RWD)
126.2HP@6100rpm
123ft-lbs@3500RPM
LZ22 block, reworked & ported L-series head, DAMB cam,
Electramotive/TWM induction
(actual sheet)

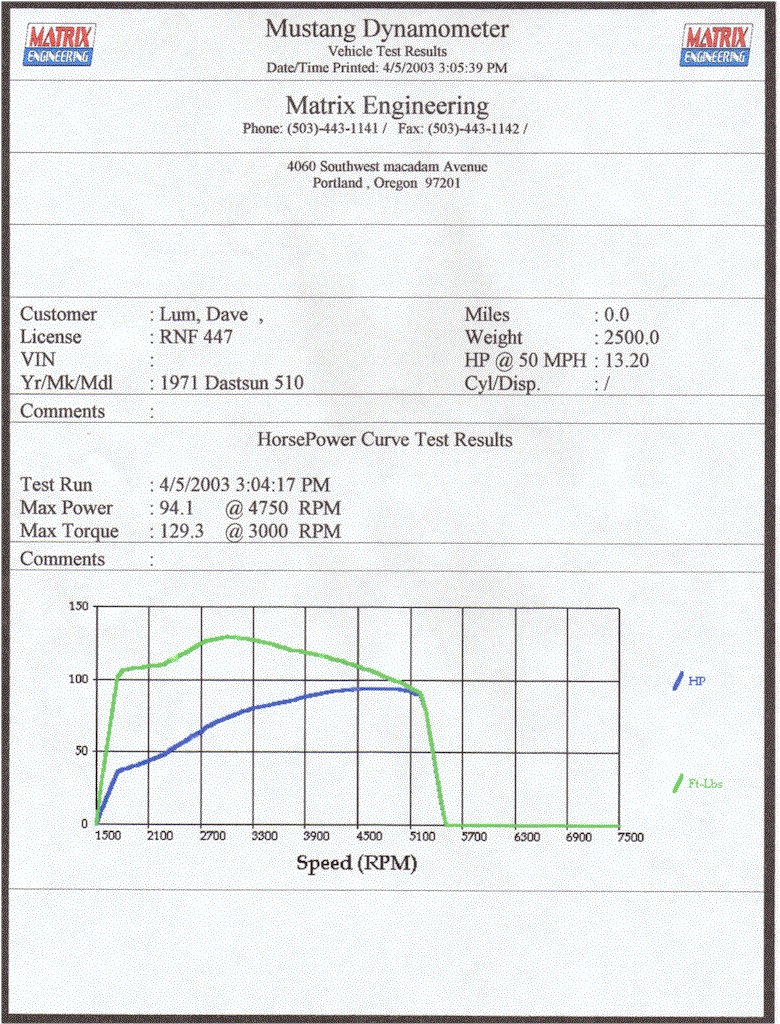

L22 "hybrid"
#3 (1971
510 wagon 5-speed)(RWD) [Webmaster's wagon]
94.1HP@4750rpm
129.1ft-lbs@3000RPM
LZ22 block, reworked & ported L-series head, DAMB
cam, 240Z (44mm) SU carburetors, closed chamber head. Running very rich
suspect fouled plugs although engine seemed to run fine.
(actual sheet)

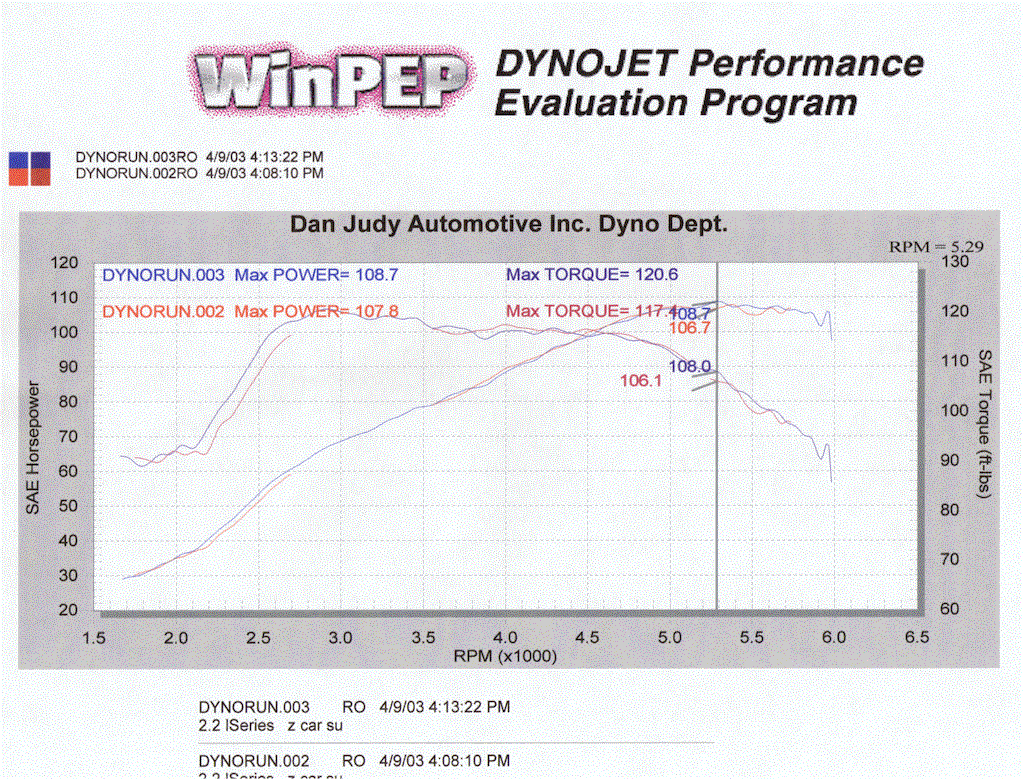

L22 "hybrid"
#3 dyno series 2 [Webmaster's wagon 4 days later]
Same engine as above, new spark plugs and new runs on
Dynojet instead of Mustang dyno. No other changes.
108.7HP@5300rpm
120.61ft-lbs@2900RPM
(actual sheet)
*NOTE TORQUE SCALE IS OFFSET FROM HP SCALE
KA24E (1971 510 5-speed) (RWD)
KA24E (12valve) : 127 rear wheel HP
stock 1990 240 SX 12valve 2400, with 2"exhaust, Sebring muffler, and K & N cone
air filter (on a custom air intake/air flow meter mount.computer tweaked by Wolf Racing (randyyork@loop.com)

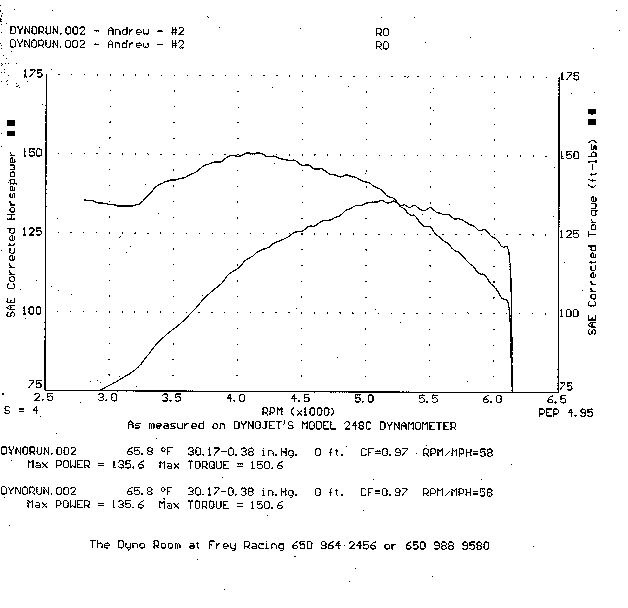

KA24DE (1998 240SX SE 5-speed)(RWD)(Stock)
KA24DE (DOHC)
135.6hp @ 5300rpm
150.6ft/lbs @ 4100rpm
(actual sheet)
KA24DE (1992 240SX SE 5-speed)(RWD)
KA24DE (DOHC)
Jim Wolf Technology ECU, S & S Headers, Greddy Cat Back Exhaust, Ram Air Intake, Unorthodox Racing Pulley,
104 octane.
169hp @ 5600rpm
170ft/lbs @ 4400rpm
(actual sheet)

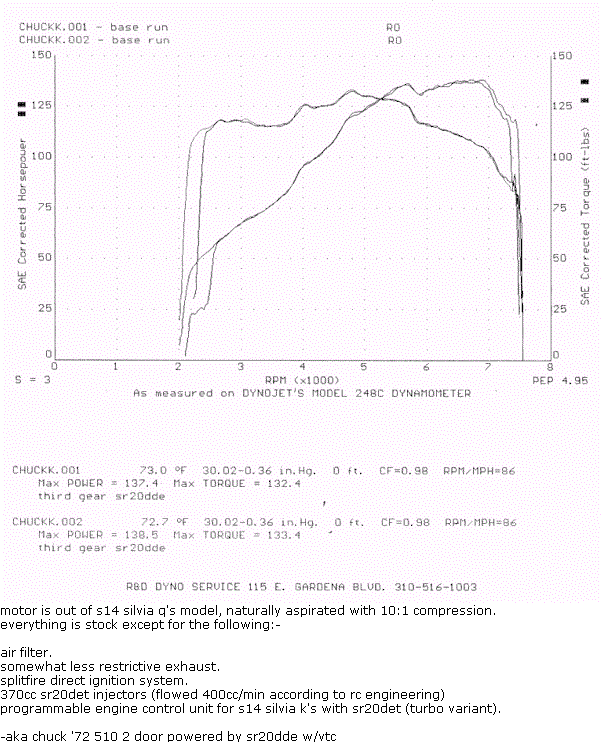

SR20DE (1972
510)
everything is stock
except for the following:-
air filter.
somewhat less restrictive exhaust. splitfire direct ignition system.
370cc sr20det injectors (flowed 400cc/min according to rc engineering)
programmable engine control unit for s14 silvia k's with sr20det (turbo
variant). the ecu program was left at default program from the
manufacturer, meaning timing and air fuel ratio are better suiting engines
with boost.
138hp @ 6800rpm
133ft/lbs @ 4800rpm
(sheet)

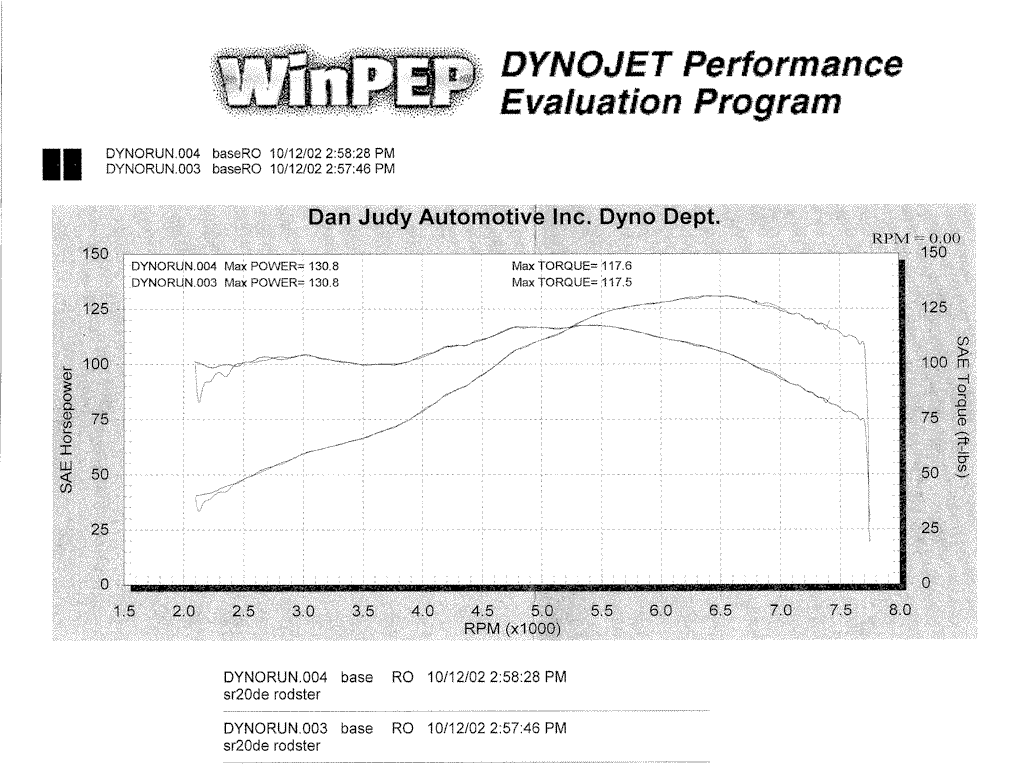

SR20DE (Datsun
Roadster 5-speed)
Stock except for
necessary changes to make fit into Datsun Roadster
130.8hp @ 6500rpm
117.5ft/lbs @ 4800rpm
(actual
sheet)

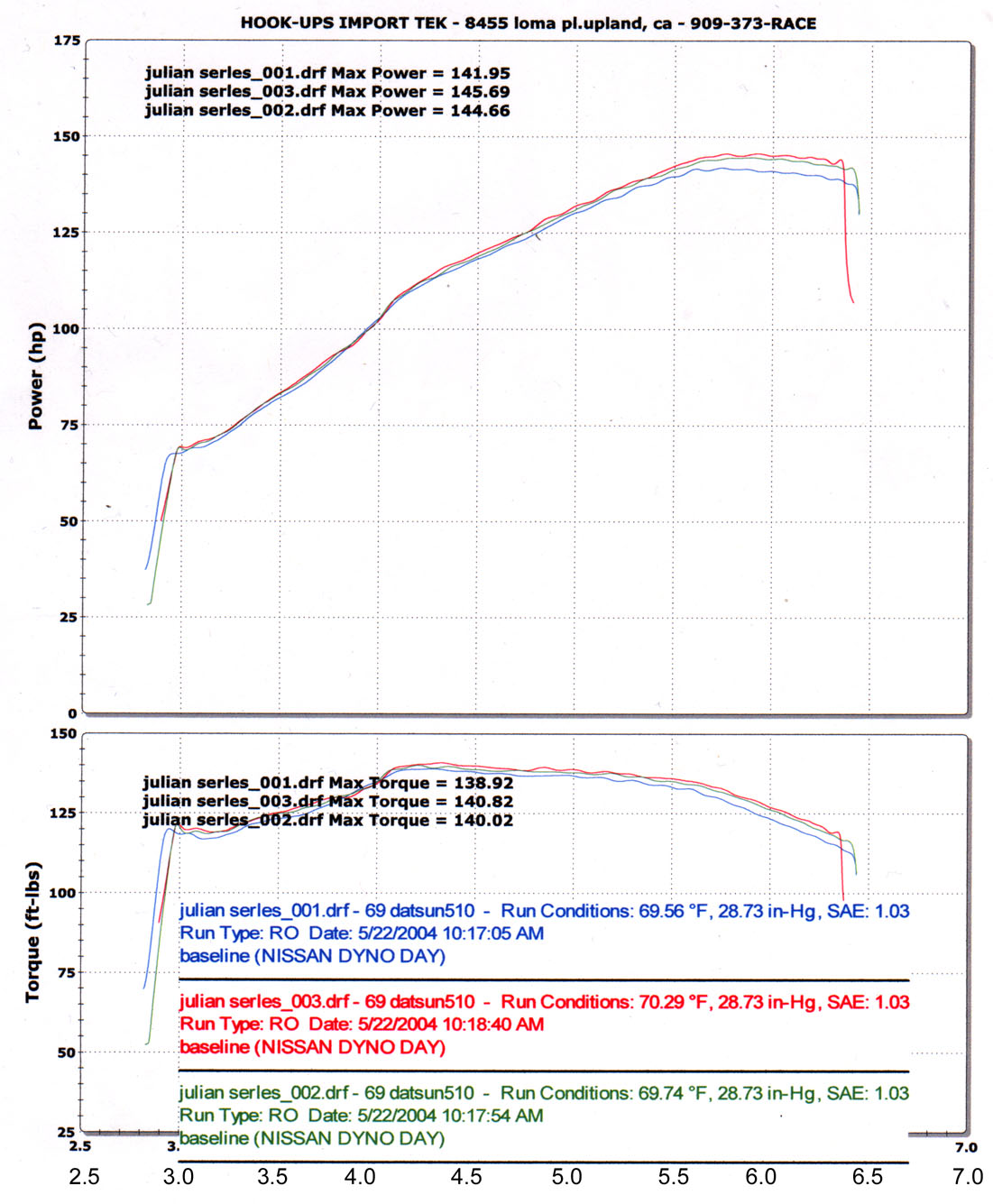

KA24DE (Datsun
510 5-speed)
[New 5/23/2004]
Stock except for
necessary changes to make fit into Datsun 510
145hp @ 5700rpm
140ft/lbs @ 4200rpm
(actual
sheet)
- - - - - - 4
cylinder turbo - - - - - -

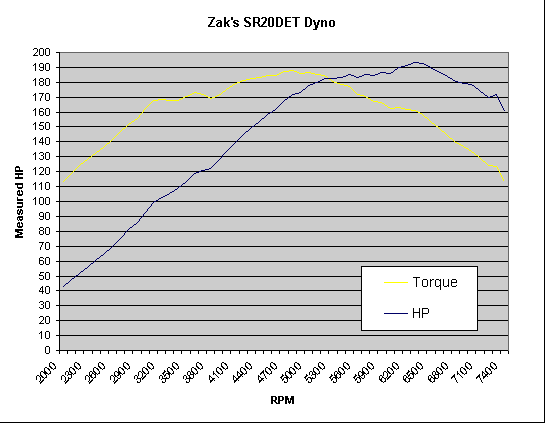

SR20DET (NX2000)
- - - - - - 6 cylinder non-turbo - - - - - -

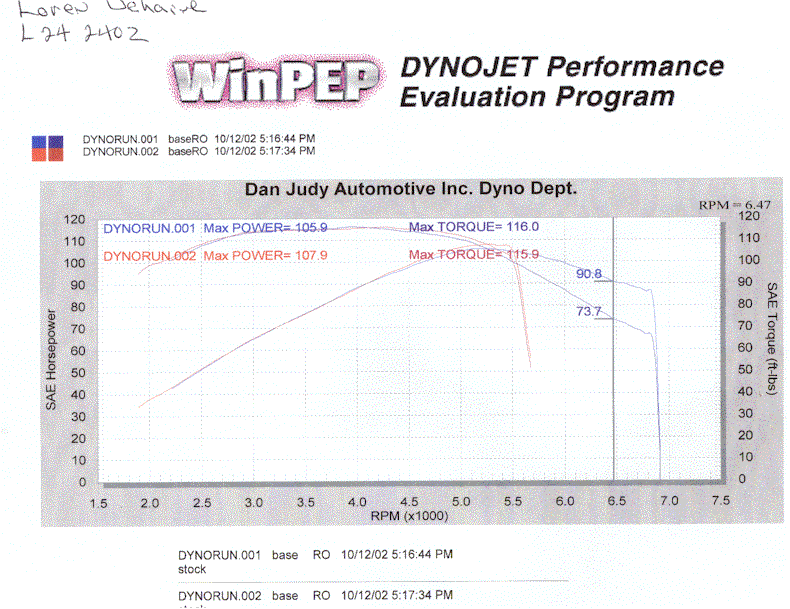

L24 (240Z 4-speed)(RWD)
Stock
107.9hp @ 5300rpm
115.9ft/lbs @ 4000rpm
(Actual sheet)

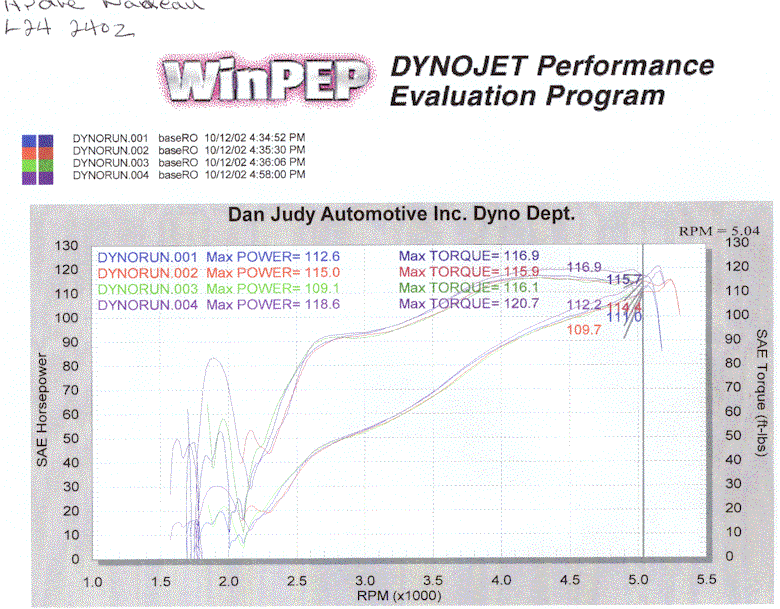

L24 (1970
240Z 5-speed)(RWD)
Triple Weber carbs - not full runs
118hp @ 5100 rpm
120.7 ft-lbs @ 4600 rpm
(actual
sheet)

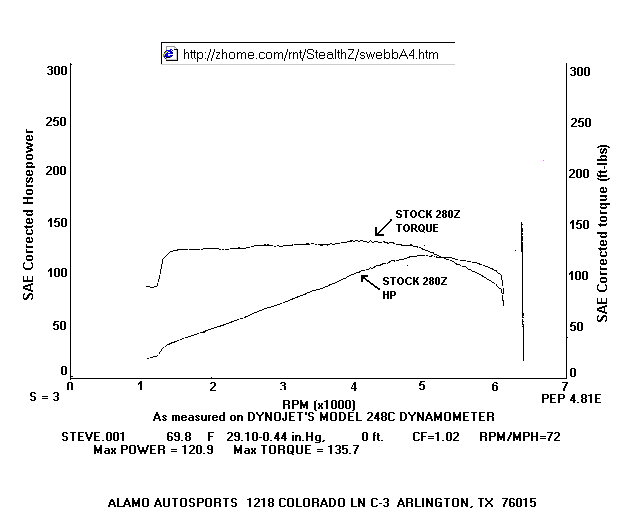

L28 (280Z 5-speed)(RWD)
Stock
120.9hp @ 5200rpm
135.7ft/lbs @ 4100rpm
(actual sheet)(modified from
this page)

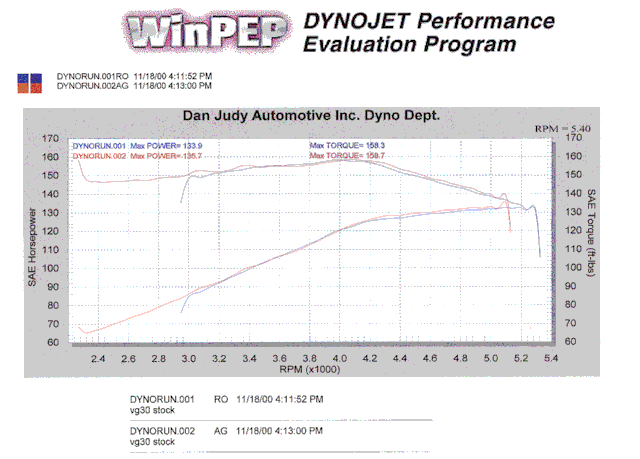

VG30E (1971 510 5-speed)(RWD)
Stock except headers
135.7hp @ 5200rpm
158.7ft/lbs @ 4000rpm
(actual sheet)
VG30E (1971 510 5-speed)(RWD)
Stock 210,000mi
137.0hp @ 5200rpm
152.8ft/lbs @ 3600rpm
(actual
sheet)

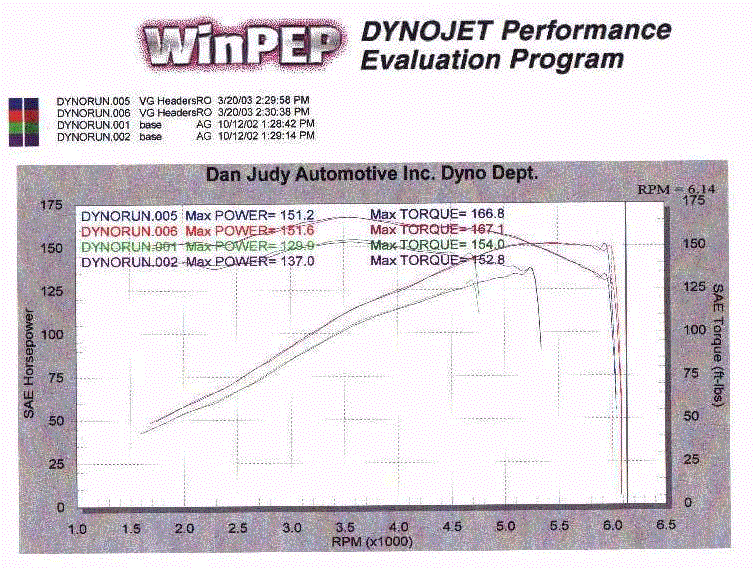

VG30E above with header comparo (1971 510 5-speed)(RWD)
151.6hp @ 5600rpm
166.8ft-lbs @ 3500rpm
(actual
sheet)

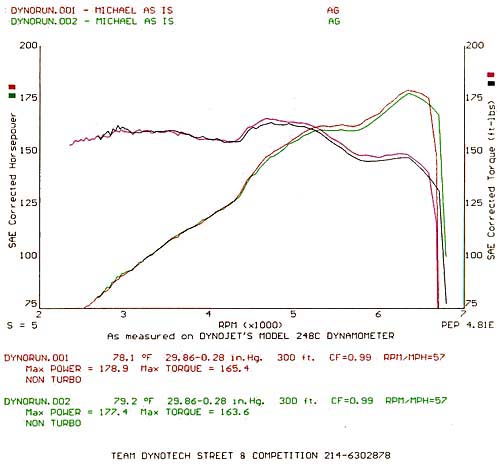

VG30DE (1993 300ZX NA 5-speed)(RWD)(Stock)
178.9hp @ 6400rpm
165.4ft/lbs @ 4800rpm
(actual sheet)

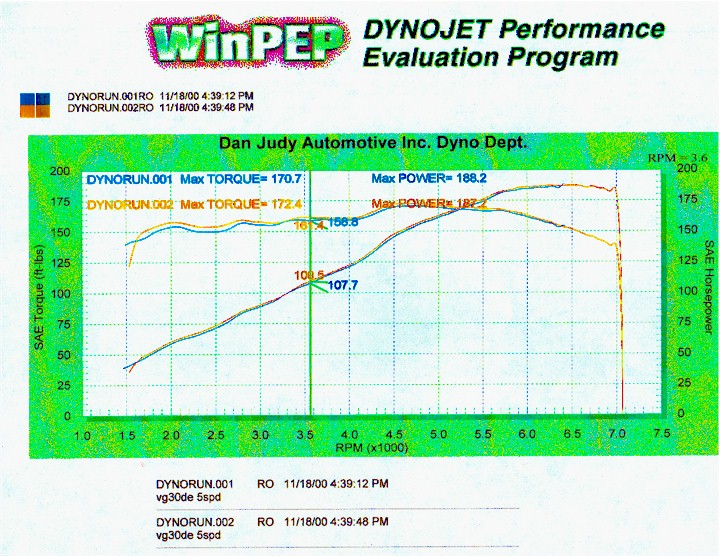

VG30DE (1971 510 5-speed) (RWD)(From Infiniti J30)(Average of two runs)
Jim Wolf Technology ECU, custom intake,
EGR removed, J30 exhaust manifolds, 2.5" exhaust
187.7hp @ 6400rpm
171.5 ft-lbs @ 4500rpm
(actual
sheet)
VQ30DE (2000 Maxima SE
5-speed)(FWD)(Stock)
190hp @ 6400rpm
187 ft-lbs @ 3700rpm
(actual sheet)
- - - - - - 6 cylinder turbo - - - - - -

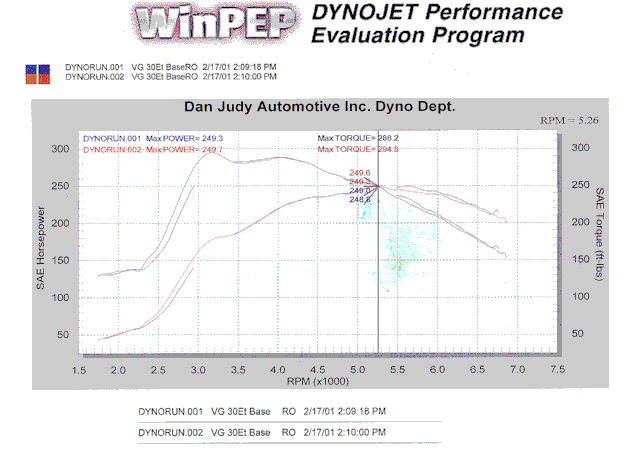

VG30ET (1970
Datsun 510 5-speed)(RWD)
JWT ECU, euro cams, 3" exhaust
249.71hp @ 5250 rpm
295 ft-lbs @ 3100 rpm
(actual sheet)

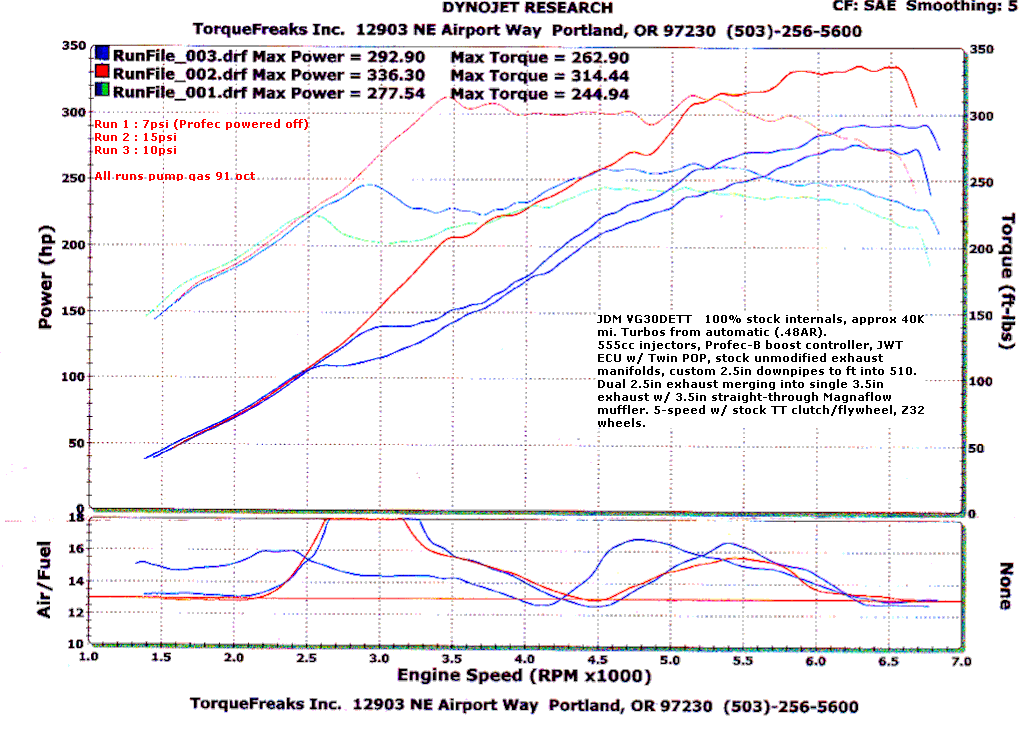

VG30DETT (1971 Datsun
510 5-speed)
(RWD)
VG30DETT .
15psi, pump gas (91 octane), JWT Twin POP ECU, 555cc injectors, Profec-B, no
EGR, dual 2.5" into single 3.5", single 3.5" Magnaflow
muffler.
336hp @ 6400 rpm
314 lb/ft @ 3500 rpm
(actual sheet)

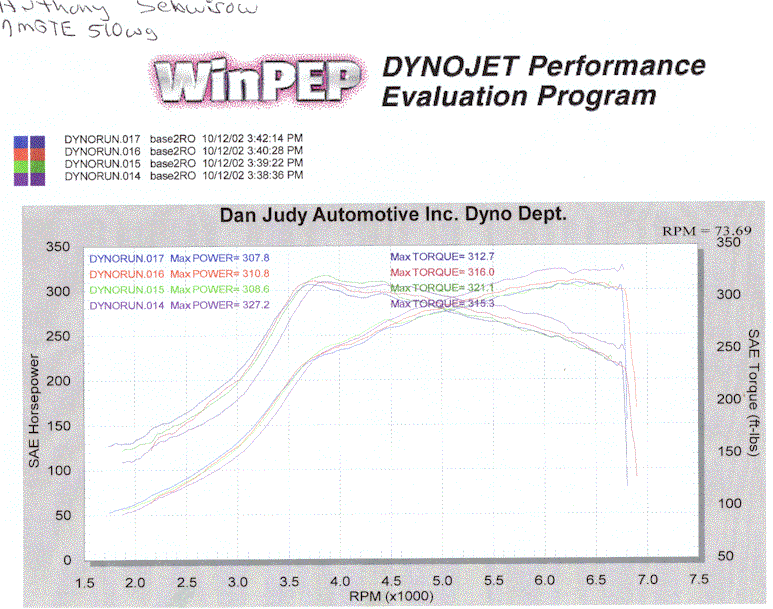

7MGTE (1972
Datsun 510 wagon 5-speed)(RWD)
Toyota Supra engine, 14PSI, water/air intercooler, etc
327.21hp @ 6600 rpm
315.3 ft-lbs @ 3700 rpm
(actual
sheet)
- - - - - -
V-8 - - - - -

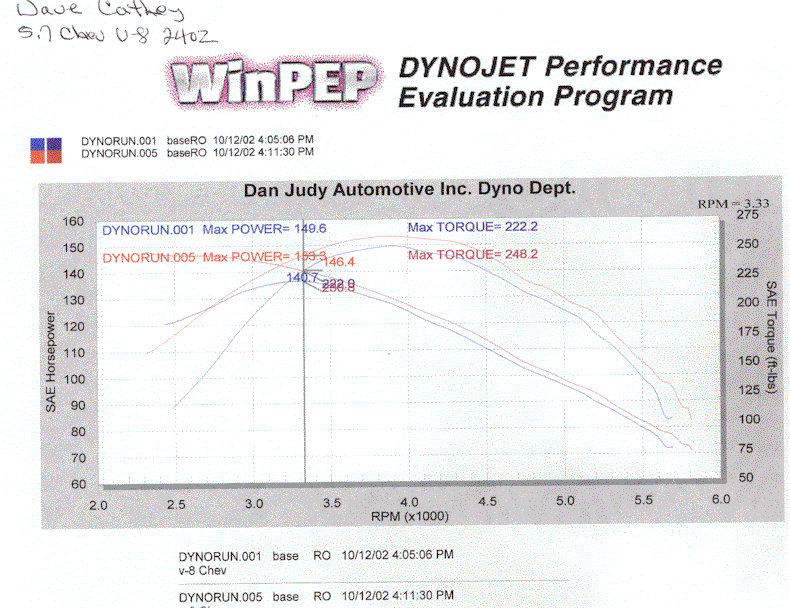

350cid Chev V-8 (1971
240Z 4sp automatic 700R4)(RWD)
(4bbl, stock)
153.3hp @ 3800 rpm
248.2 ft-lbs @ 2400 rpm
(actual
sheet)
