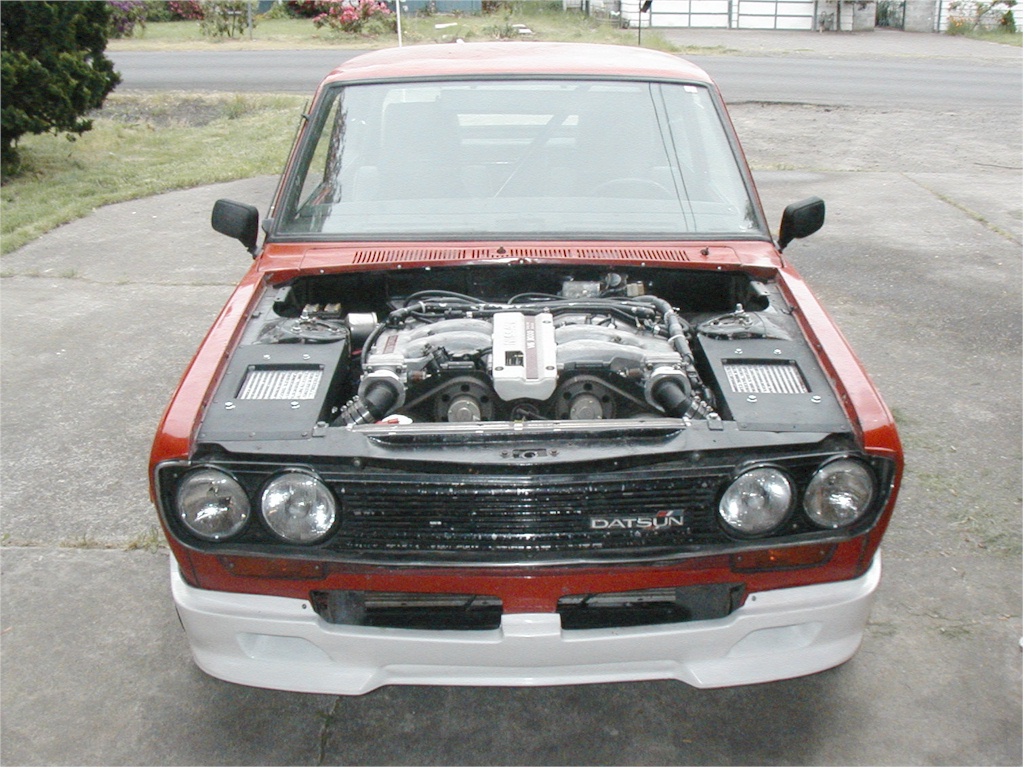

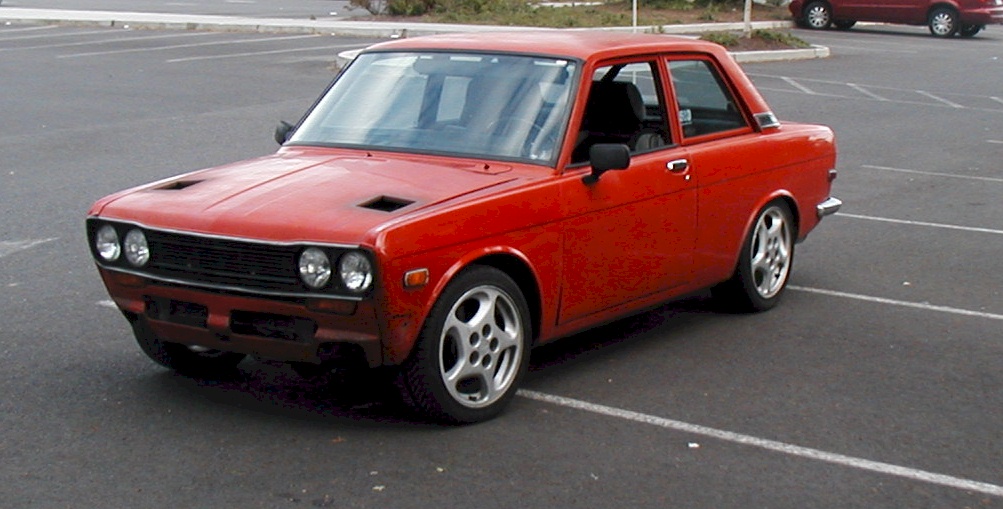

What to do when 230HP isn't enough in a 510? Add two turbos.

Step-by-Step buildup
design notes, etc


Research / Links

Jim's Z32 Turbo Upgrade Repository
DETT Turbo comparo
Great DETT upgrade/info site
Turbo hoses.com
Specialty Z
Blowoff Valve  link 1
Blowoff valve link 2
ECU and tuning data
(awesome info, link toZ1 Motorsports
post on TT.NET)
My dream setup

Z32 NA to TT
conversion info





Garrett TB22

COMPRESSOR
T3 Housing / .42 AR / 50 Trim
TURBINE :
T25 Housing / .48 AR (auto) .53AR (manual)/ 62 Trim

(Click for 1024x768 image)

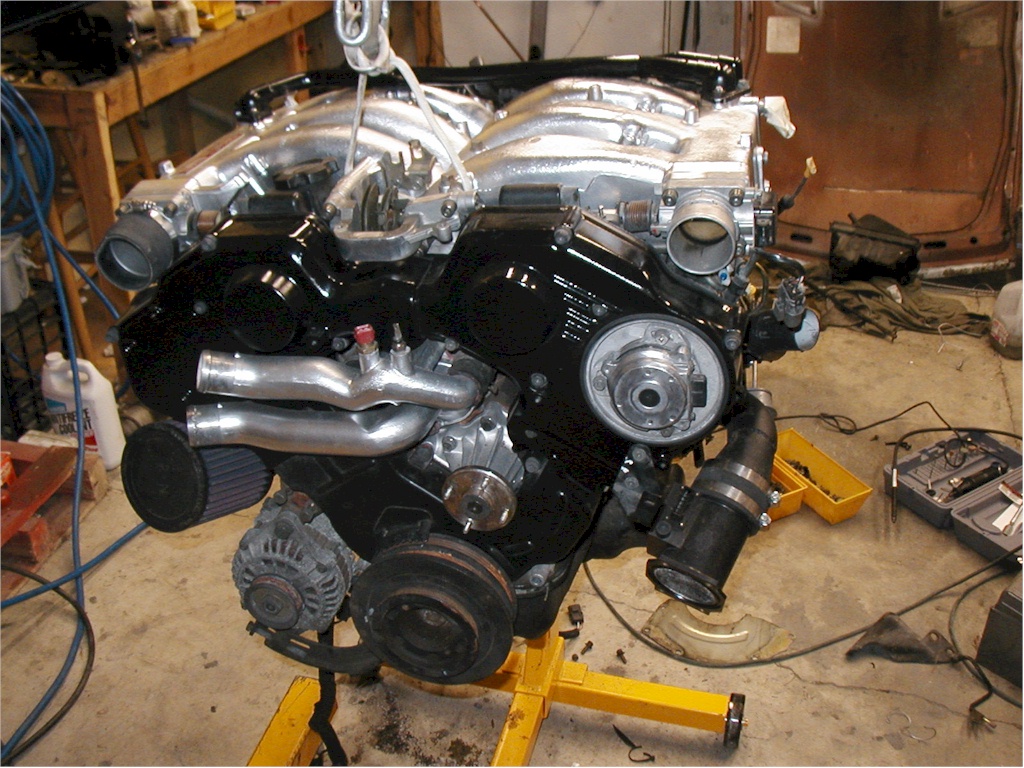

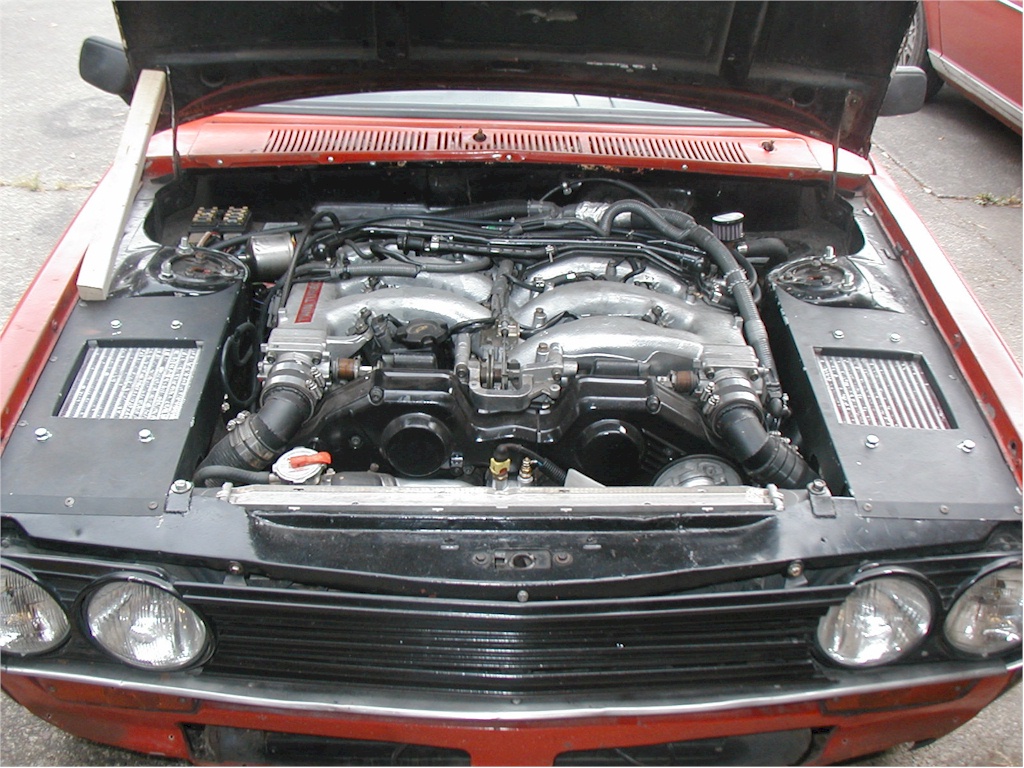

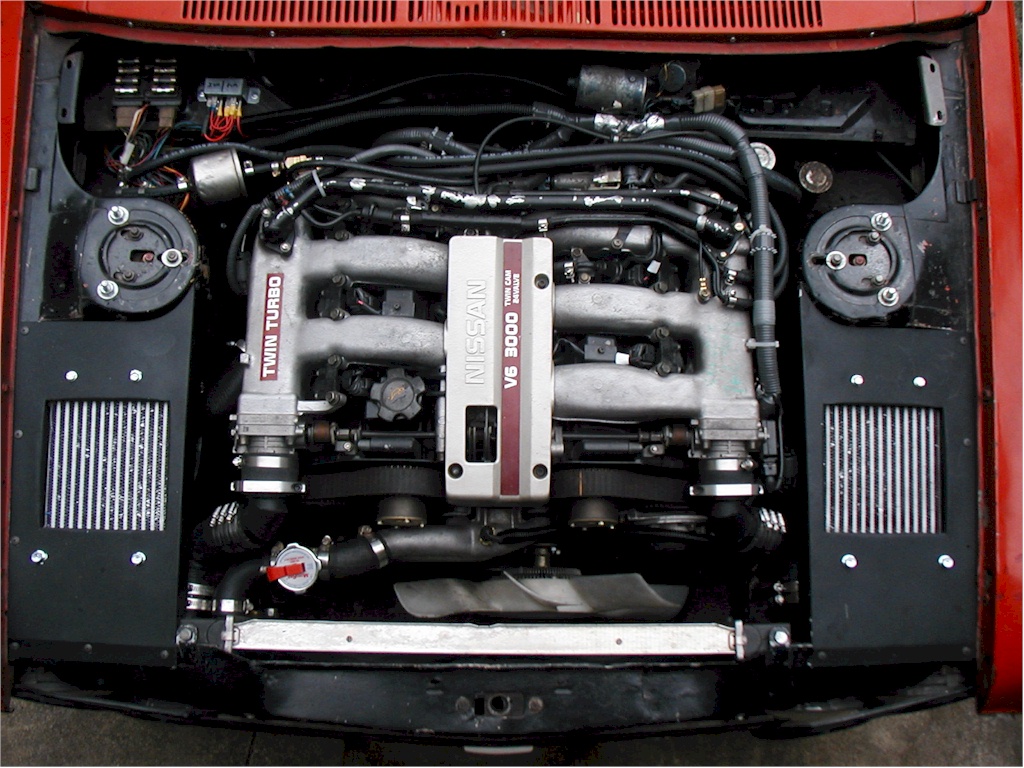

My VG30DETT Modifications:

Jim Wolf ECU w/ twin POP
555cc injectors

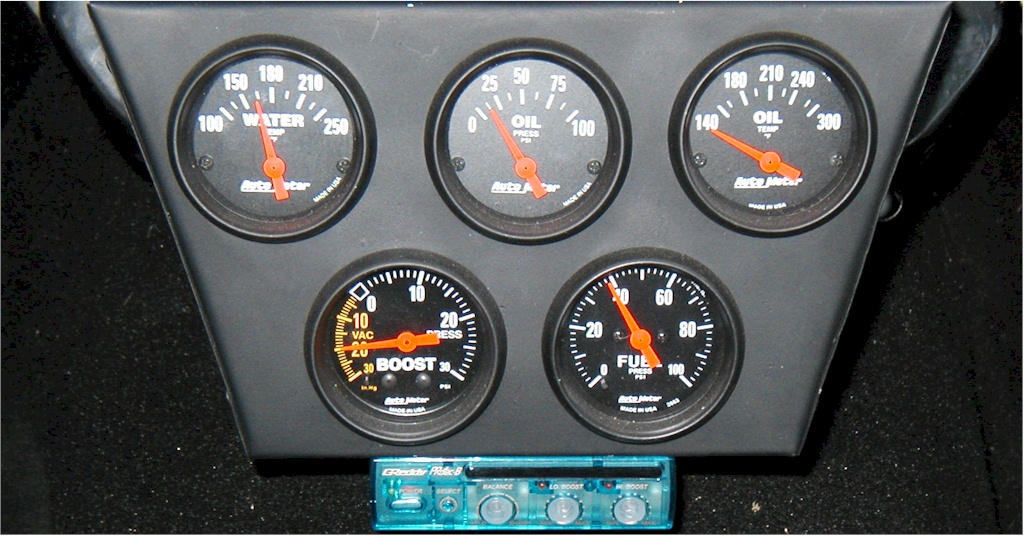

Greddy Profec B boost controller
Custom intake

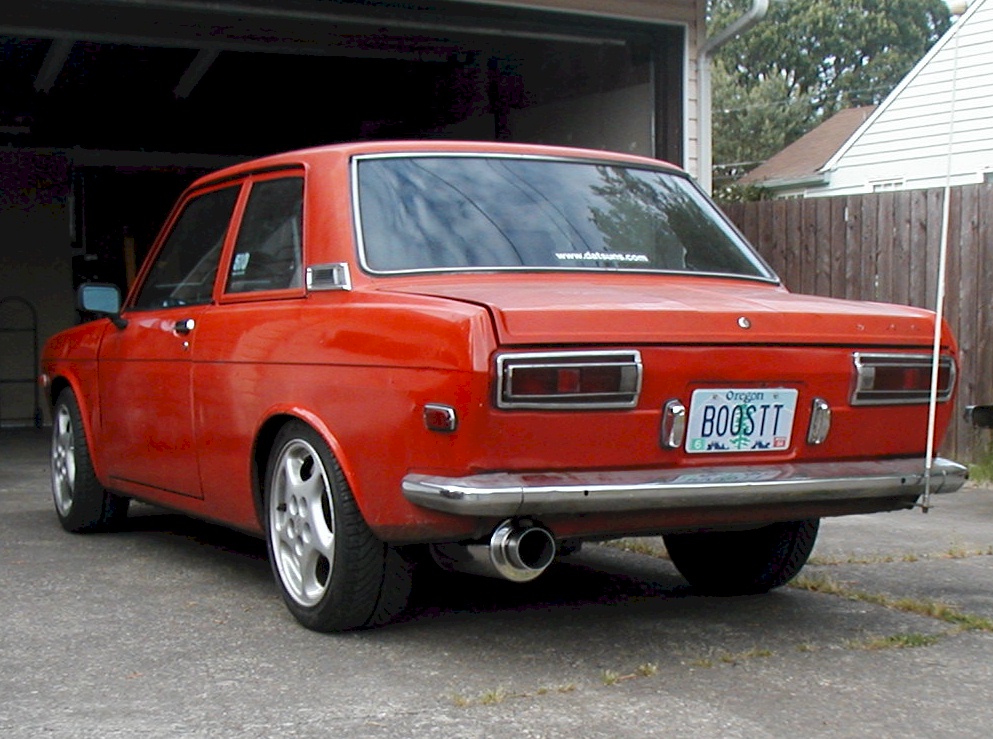

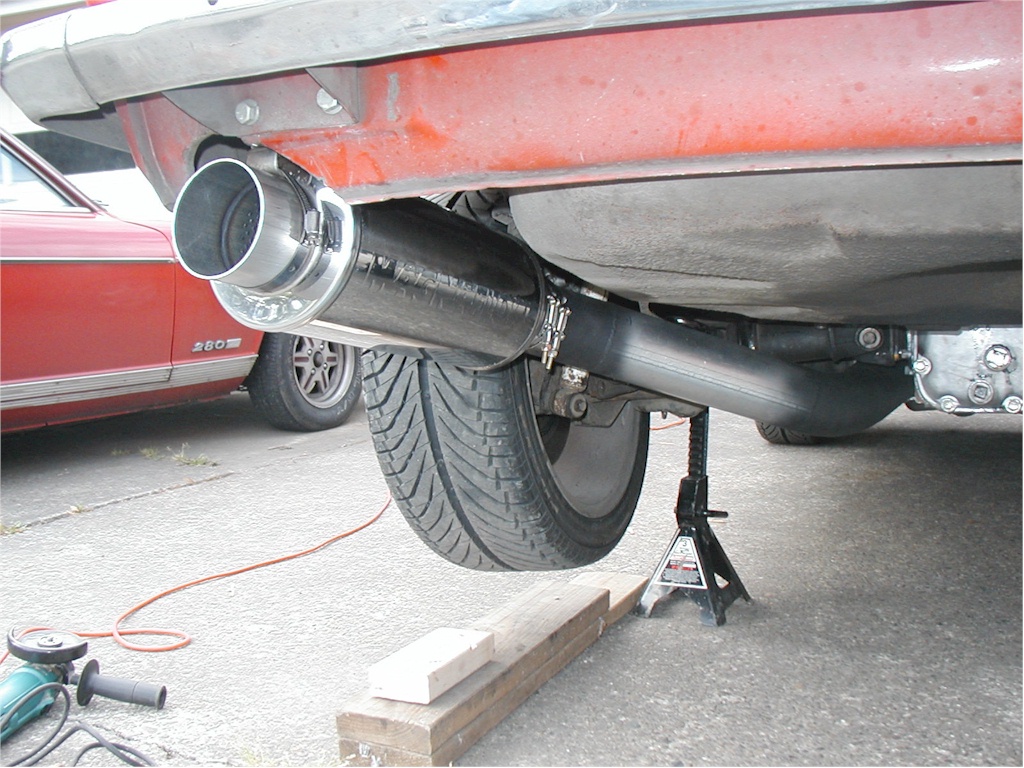

Dual 2.5" into single 3.5" exhaust, no cats

Boost setting is 15PSI

ZXTT guys would call this a "Stage V+" level of modification.

By all accounts this setup should produce something over 300 wheel HP (that's 370hp for those comparing output to what a manufacturer like say, Chevy rates their Corvette's at..). With the car weighing at around 2600lbs, it should move pretty well. Of course only driving it will tell the story if it really works or not.

Stage III is claimed to put 396hp to the crank, with stage V being in the 415hp range. I'm a pessimist, however if I can get to 330 wheel HP (400 crank) I'll be happy....for a while... :-)

Drivetrain : 1993 300ZX turbo 5-speed transmission, 240Z limited slip diff (R180) 3.36:1 ratio.

SUSPENSION :

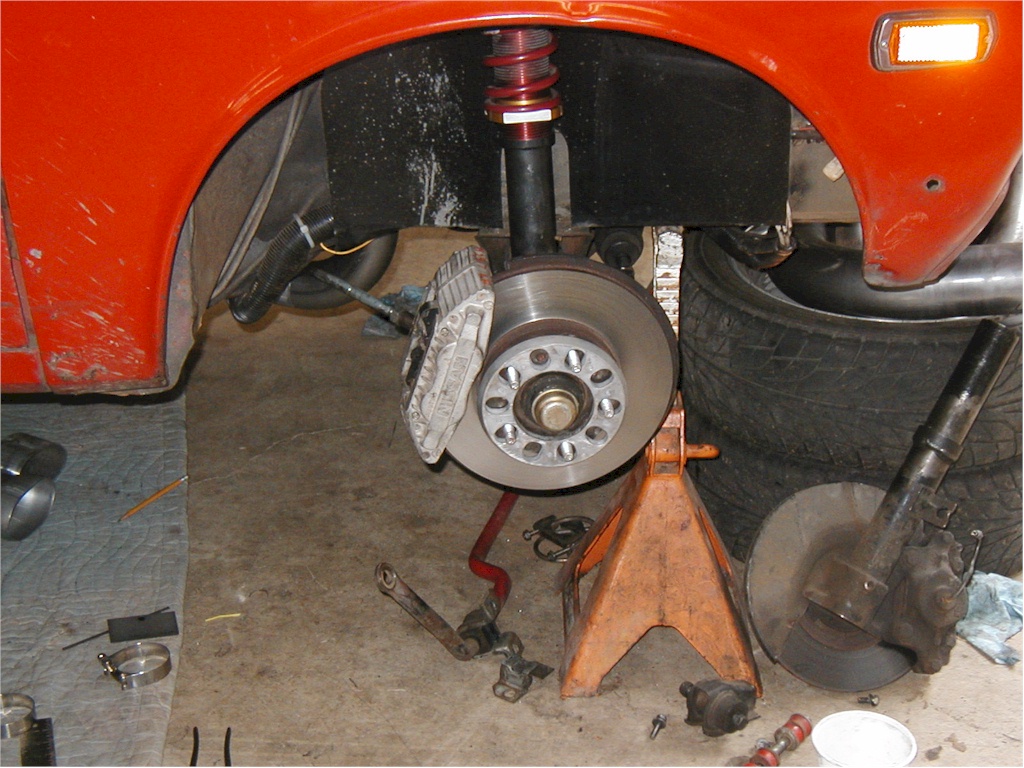

Front - Shortened 200SX (V6) struts, Tokico Illumina adjustable inserts, adjustable camber plates, rack & pinion steering, custom adjustable T/C rods. Ground Control coilovers, 200#/in spring rate.

Rear - Nissan Competition (Roadster front) springs. 862#/in (212#/in wheel rate). Tokico Illumina 5-way adjustable shocks. DAMB productions "Penultimate" adjustable rear crossmember.

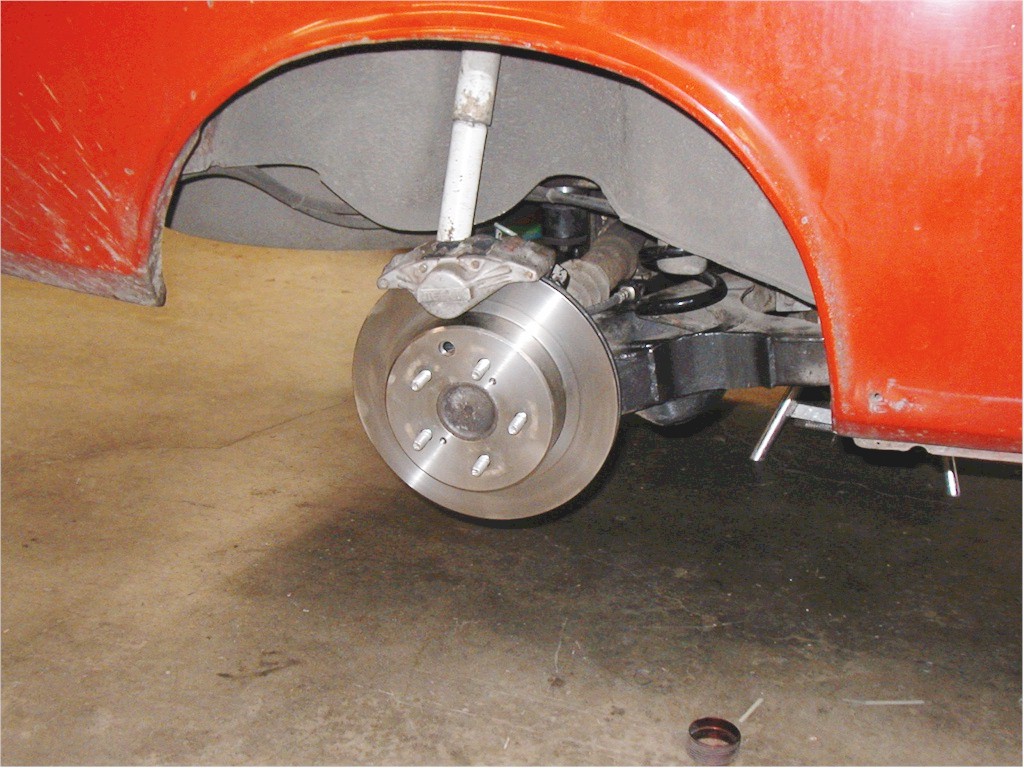

Brakes : Front - 10.8in vented with aluminum 4-piston calipers. Rear: 11.7in vented rotors with 2 piston aluminum calipers. Porterfield R4S pads. 280ZX 15/16in master cylinder.
