Built and owned by Jeff Shoesmith from Sydney, Australia -
shoeman@ozemail.com.au

New link for info/pictures : http://www.ozemail.com.au/~shoeman

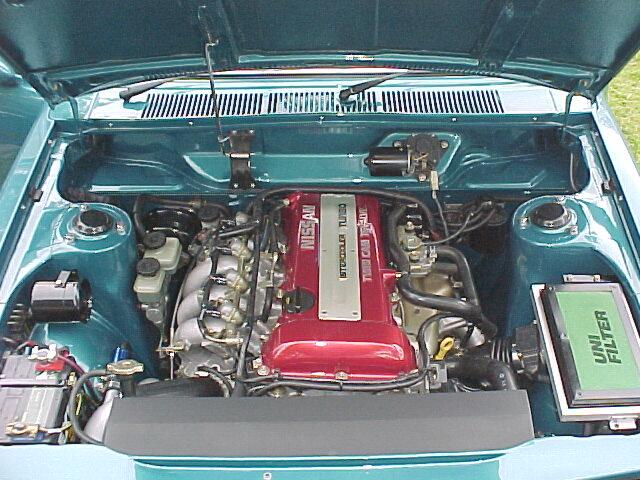

Engine minishoesmith-sr20det.jpg (3742 bytes)

Nissan SR20DET - All alloy 2.0 litre, twin cam, 16 valve, turbo (Garrett T-28) with four coil distributorless electronic ignition, closed loop - sequential fuel injection, air to air intercooler, vacuum operated blow-off valve and factory adaptive learning ECM.

Sourced from a 1993 S13 Nissan 180SX, the engine and gearbox had only done 8000 Km in Japan prior to it's donor vehicle being rammed in the passenger door and being written off. I bought the engine in October 1994.

Exhaust

Installed a custom made 45mm spacer between turbo and cast iron dump pipe to get dump pipe to exit behind (instead of on) the steering idler arm. 3" mild steel pipe from dump pipe to 3" catalytic converter, 3" pipe from cat, through rear crossmember to rear muffler, which is a Genie 3" double offset straight through stainless steel unit P# 792814.

Fuel System

Fuel tank has had 1/2" feed and 5/16" return lines installed in the factory location. 1/2" feed line to 800mL anti-surge tank behind RHS rear foot well, 1/2" feed line from output of anti-surge tank to Pierberg EFI pump mounted on front of rear crossmember, 5/16" EFI feed line from pump to fuel rail (via EFI filter), 5/16" return line from standard fuel pressure regulator to tank. There is also a 5/16" overflow line from the top of the anti-surge tank back into the top of the fuel tank. All new tinned steel 5/16" bundy tube fuel lines have been run.

Driveline

Gearbox is standard SR20DET 5 speed with standard clutch - so far. Tailshaft is a shortened Holden V8 unit. Diff is an R200 3.9:1 LSD from a 300ZX (Z31 I think). Drive shafts are custom made and heat treated using 300ZX C.V. joints and 240K axles. They've been made shorter than the 300ZX units to suit the 510's narrower wheel track.

Suspension

Front struts are 180B (610) with 1 degree negative camber, lowered and rotated spring seats (rotated to provide greater tyre clearance). Strut inserts are Tokico Gold. Springs are lowered Jumbo's. Castor rods are Holden LC Torana (thicker and adjustable). Anti-sway bar is 22mm custom made, bending between sump and crossmember.

Rear A-arms are 240K. These arms were relocated inwards by about 20mm each to retain original 510 track width (read: to be legal). 240K shock absorber mounts were cut off and 510 mounts have been welded on. Shockers are KYB (Toyota parts - just quietly), springs are lowered Jumbo's. Crossmember has had A-arm mounting holes slotted to correct camber and toe, exhaust hole enlarged to 4"-ish and anti-sway bar mounts added. Rear anti-sway bar is 20mm custom made, under crossmember type.

Brakes

Front rotors are 276mm ventilated Mitsubishi Verada V6. Calipers are Holden Commodore VL Turbo. Rear rotors are 290mm 300ZX. Calipers are also 300ZX (yes I bought the complete rear end!). This combo produced a little premature rear end lock up, a Tilton proportioning valve mounted in the boot fixed that. Master cylinder is 15/16 280ZX and booster is Jap import 200B (710). All new tinned steel 3/16" bundy tube brake lines have been run.

Bodywork Details

Bonnet is louvered above air filter. Boot lid and rear 1/4 panel 'fins' are lead-wiped to produce neater panel gaps. Guard lips are rolled up for tyre clearance. Transmission tunnel is modified to suit SR20 shifter. Battery bracket is rotated 90 degrees and lowered 2". Radiator support panel is opened up to suit wider radiator core and intercooler pipe work. Key locks are removed from fuel filler door and boot lid, these are now opened by remote solenoids (with back-up cables). Mirrors are Ford XW GT 'teardrop' mounted on custom aluminum spacers. Radio aerial is Mazda 323 installed inside A-pillar. Bumper bars are re-rolled and re-chromed, door handles and other parts are also re-chromed.

Paint Colour and Type

"Daintree" green metallic. Spies Hecker 2 Pak (2C057). Underside of floor coated with grey 'Stoneguard'.

Wheels and Tyres

Simmons OM16 16x7 3 piece. Falken GR/B Z rated 205/45/16 at all four corners.

Special Engineering Features

Reversed engine crossmember, reversed bend in steering drag link (for engine clearance), custom engine mounts and gearbox mount, 360 degree tailshaft loop, Nissan Skyline radiator (I think - got it from an importer who wasn't sure), thermal fan, Narva H4 and H1 halogen headlights (400W total), Mitsubishi Scorpion twin handbrake cables (shortened) and floor mounted lever, Toyota Corolla retractable seat belts, Ford 'smartlock' hexagonal door locks and central locking.

Interior

Momo Champion wheel, Autometer vacuum/boost gauge, Mallory tacho, re-trimmed velour Mitsubishi Lancer front buckets, re-trimmed velour Datsun Sunny coupe rear seat, velour door trims and head-lining, charcoal cut pile carpet with serious sound deadener under it, re-skinned dash top, painted dash face.

Stereo and Security

Alpine 7517S detachable face radio/cassette with CHM-S600 6 disc CD shuttle, Alpine eq/crossover, Alpine MRV-F300 V12 4ch amp, Alpine 3544 2ch bridged sub amp, Alpine DDC-R17F 6.5" splits (front doors - tweeters mounted in air vents), Alpine SPE-6920 6"x9" (rear shelf), Alpine 6126HX 12" subwoofer x 2 (removable box). Black Widow auto arming alarm with fuel cut and ignition immobilizer.

Performance

0-100 Km/h 5.5 sec
Standing 400m 13.1 sec @ 170 Km/h
Economy 6.5 L/100 Km (highway)
Power at wheels 136 kW @ 5800RPM & 12 PSI boost

People who helped make it happen

What they supplied Who did it - Where Phone them
Parts (engine etc) SSS Automotive - Giraween 02 9636 4301
Parts Jap Performance - Moorebank 02 9601 6715
Driveline Sydney Driveline Service - Bankstown 02 9790 7344
Suspension Allsprings - Moorebank 02 9601 6155
Exhaust Tony's Mufflers - Moorebank 02 9601 5899
Engineering My Father Robert Products available soon
Engineer's certificate Lohning Brothers Engineers - Peakhurst 02 9533 3488
Paint Vacy's Smash Repairs - Moorebank
Rubbers and seals Peter Jacksons - Dunheved (St Marys) 02 9623 5333
Chrome All Models Automotive - Condell Park 02 9792 3211
Wheels and tyres Australia's Best Tyre Service - Lakemba 02 9750 3533
Interior David's Auto and Marine - Milperra 02 9792 1611
Dashtop re-skin Restor-a-Dash - Revesby 02 9773 4163
Windscreens/window tint AAA Southside Windscreens - Canterbury 02 9787 1894
Modified vehicle insurance Torque Underwriting Insurance - Sydney 1300 369 769

People I would rather not thank

The car spares places who always ask "what car is it?", shortly followed by "ha ha ha....what would you want to do that for, it won't fit"....... yeah right guys!

The so-called experts who charged big $$$ for work I could have (or is that should have) done better myself.

Want to see more of my SR20DET- powered 1971 Datsun 1600??

"Serious Fours & Rotaries & Performance Cars No. 2". This is a 70 minute videotape featuring over 30 modified cars and a 5 minute spot on my car racing an FJ20DET Datsun 1600, SR20DET Pulsar GTI-R 4WD, SR20DET Bluebird and SR20DET BMW 3 series. Available in PAL and NTSC formats. Visit the Serious Business website http://www.seriousbiz.com.au to buy a copy.

"Fast Fours & Rotaries Feb/March 1998". This is a magazine featuring many modified cars and a full feature and picture shoot of my car. Email the magazine: fastfours@hannan.com.au

"OZDAT Online Website" http://www.datascribe.com.au/ozdatonline/featurecars/JeffS/JeffS_Dat.htm This website, constructed by Melbourne-based club OZDAT, contains specifications and good pictures.

My Brother Chris's Datsun 1200 site: http://www.geocities.com/MotorCity/2330/
