- - - 5/12/04 - - -

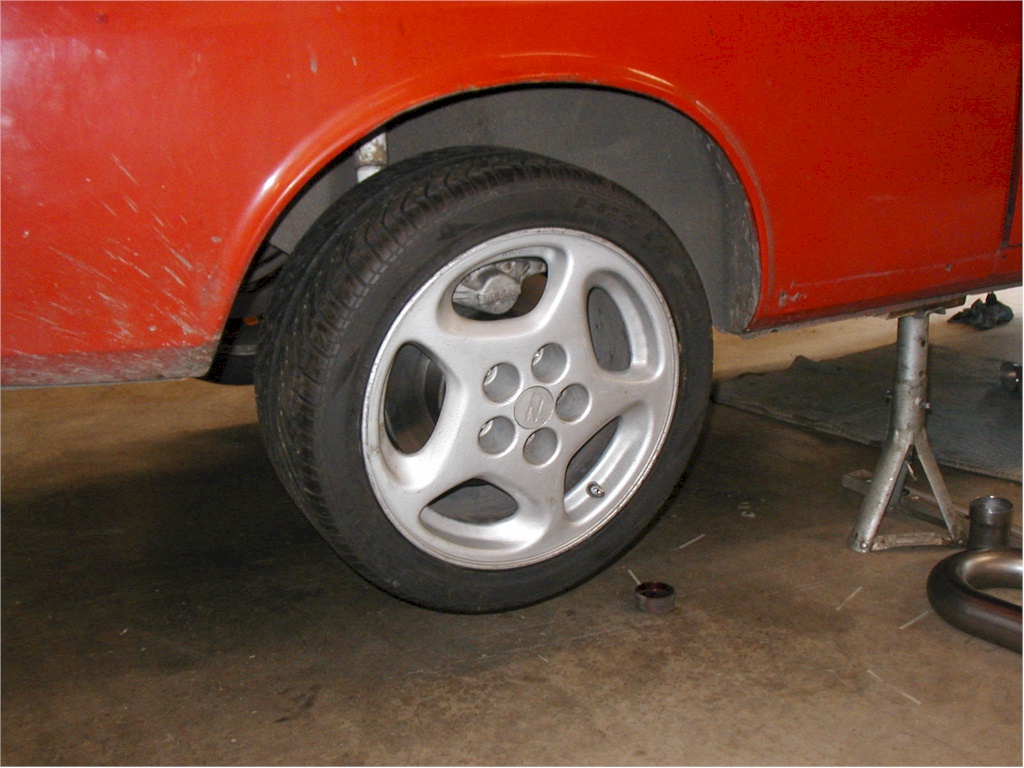

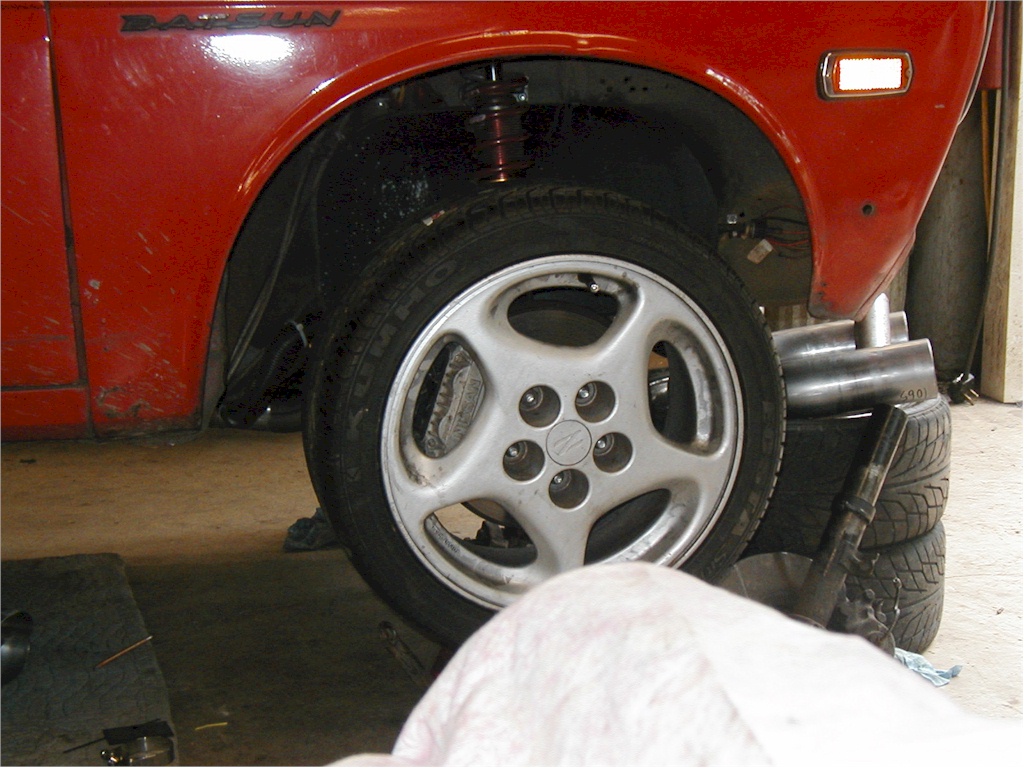

Here are the latest pictures. Note the notched lower control arm, this was to clear the 16x7.5in wheels

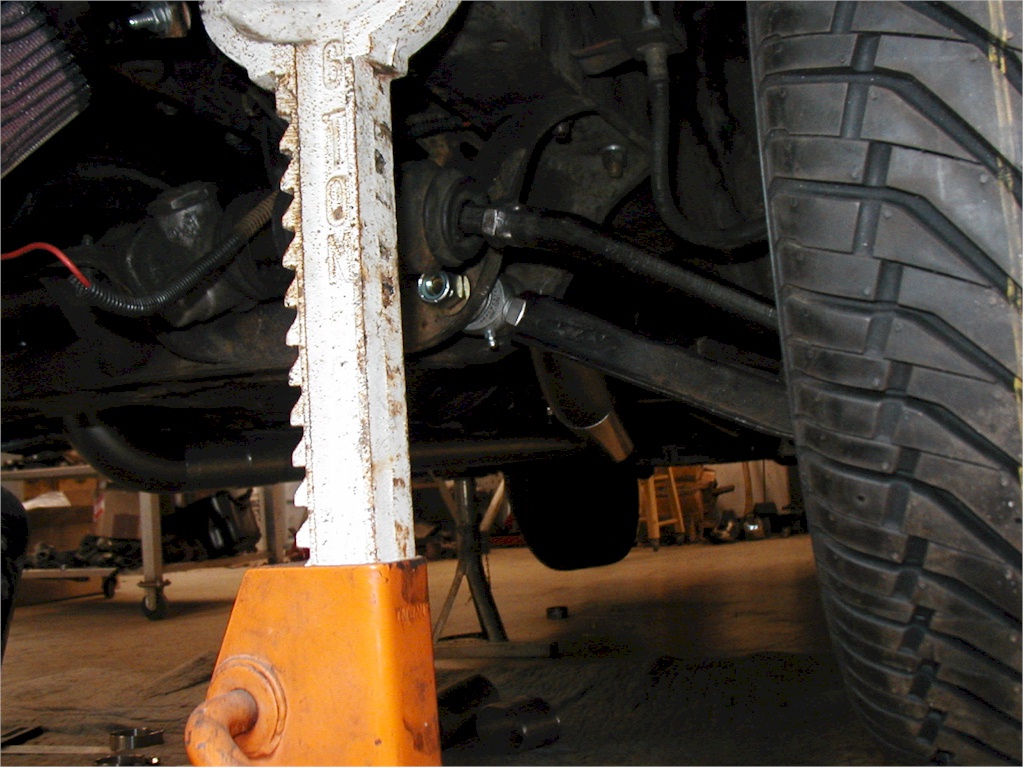

Adjustable lower control arms

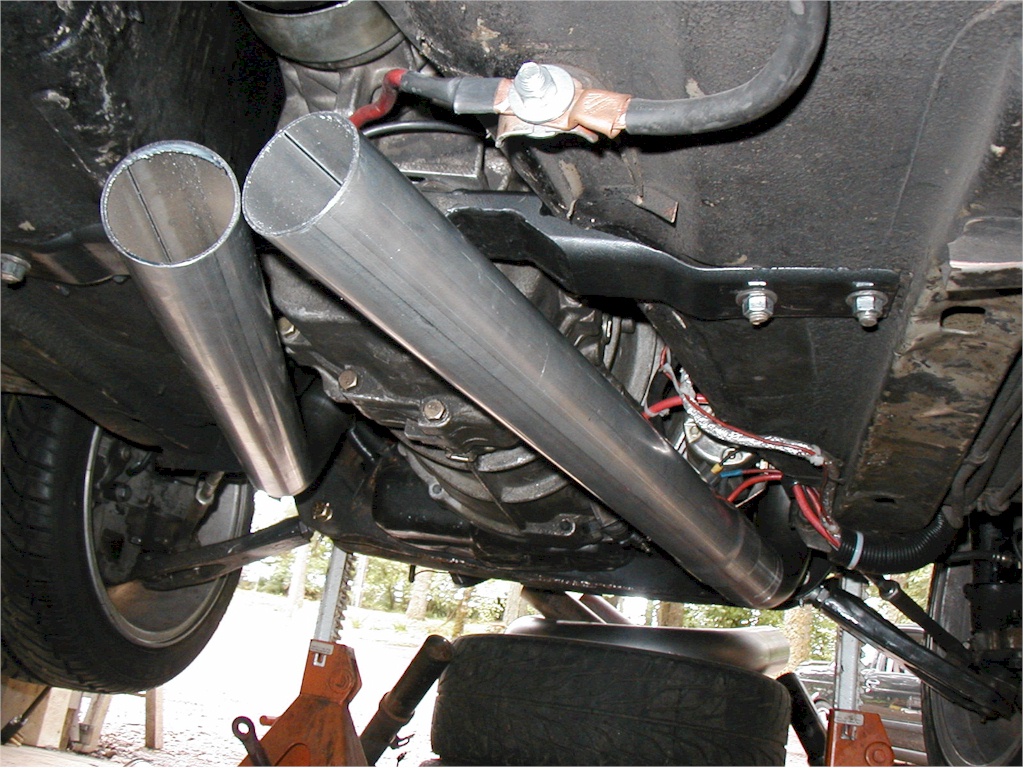

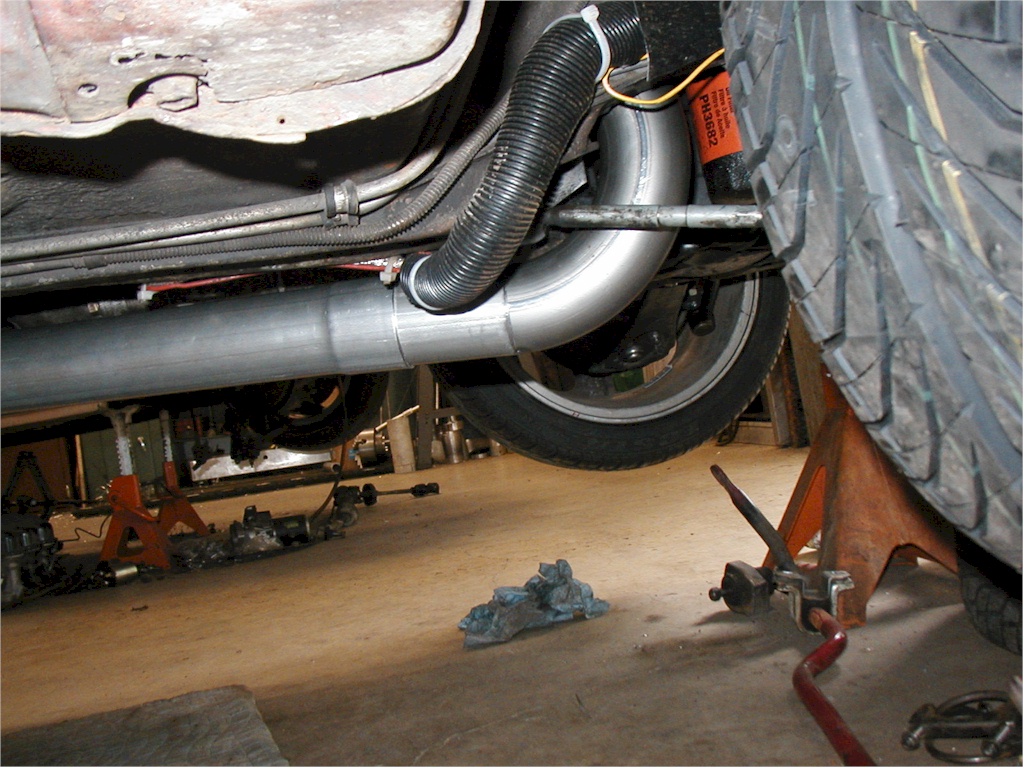

Dual 2.5" that will merge into a single 3.5"
